Environmentally Friendly Energy Saving And Widely Applicable Plastic Shredder
Shredder Application and Features
It is mainly used for crushing packing belt, tire, film, woven bag, fishing nets and other plastic waste utilization.The biaxial independent drive ,Unique knife shaft structure and a four angle rotary knife ,In the production process of high torque in low speed,No shaft winding ,clamping device phenomenon ,Improve production efficiency .
Product advantages
High-efficiency processing capacity It can quickly crush various materials (such as plastics, metals, and wood) in a short time, greatly improving work efficiency and saving manpower and time costs
Wide applicability It can handle a variety of materials (including plastics, rubber, waste tires, wood, etc.), and meet the waste recycling and resource reuse needs of different industries.
Environmentally friendly and low-noise design: Low noise and vibration during operation, some models are equipped with dust removal systems to effectively reduce dust pollution and meet modern environmental protection standards.
Intelligent control system: It adopts PLC or touch screen automation technology, supports real-time monitoring, parameter adjustment and fault self-checking, and is easy to operate and safe.
Strong durability and low maintenance cost: The cutter is made of high manganese steel or alloy material, which is wear-resistant and impact-resistant, compact and easy to clean and maintain, reducing long-term operating costs
Metallurgy Machine
Shredder Main Technical Parameters
| Shredder Model |
SX-B 600 |
SX-B 800 |
SX-B 1000 |
SX-B 1200 |
SX-B 1600 |
| Diameter Rotary |
255mm |
255mm |
300mm |
300mm |
300mm |
| Rotate the number of knives |
60pcs |
78pcs |
96pcs |
114pcs |
1501pcs |
| Rotate the cutter shaft speed |
90rpm |
90rpm |
90rpm |
90rpm |
90rpm |
| Number of fixed knives |
4pcs |
4pcs |
4pcs |
8pcs |
8pcs |
| Maximum yield |
650kg/h |
900kg/h |
1000kg/h |
1200kg/h |
1500kg/h |
| Feeding caliber |
700mm*800mm |
880mm*1100mm |
1070mm*1150mm |
1280mm*1300mm |
1650mm*2000mm |
| Power of main motor |
18.5KW*2 |
22KW*2 |
30KW*2 |
37KW*2 |
45KW*2 |
| Host weight |
4000kg |
5400kg |
6200kg |
8000kg |
9500kg |
Metallurgy Machine

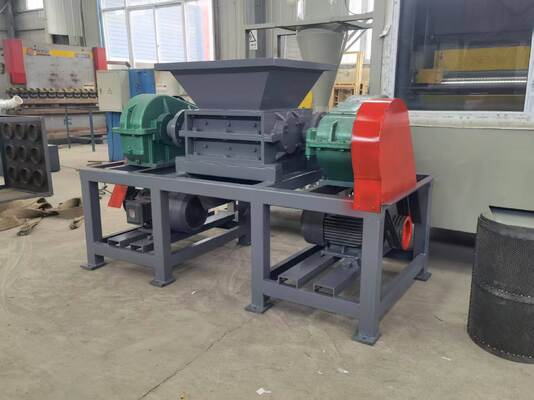

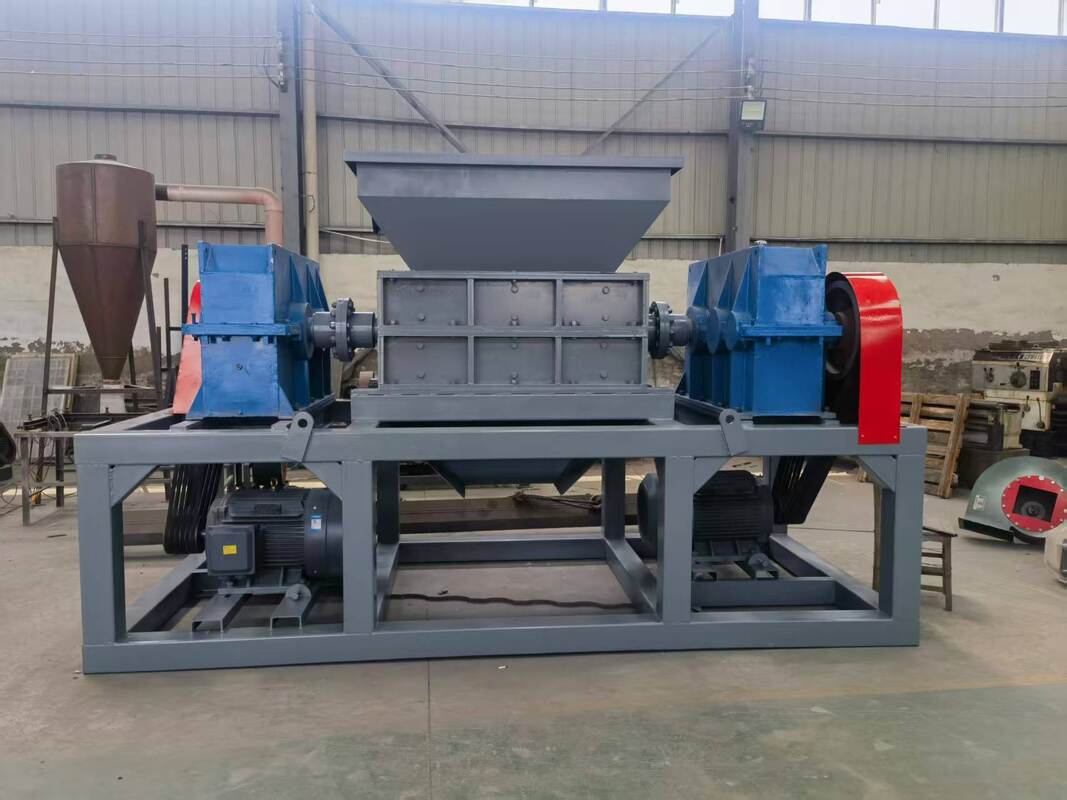

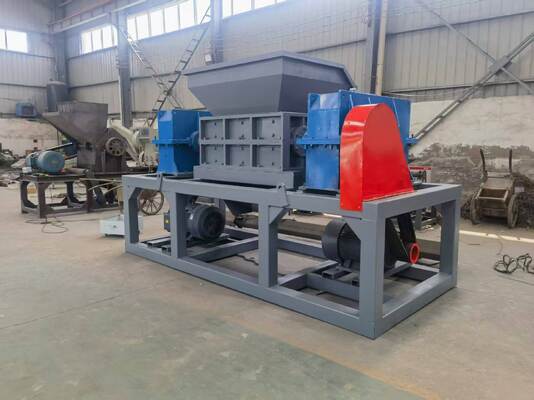

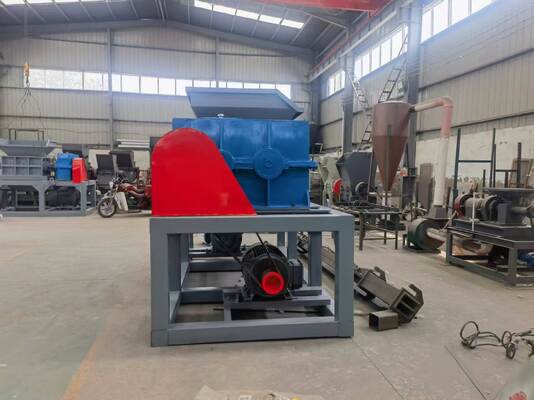

Product Display of Metallurgy Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
After Sales Service
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
